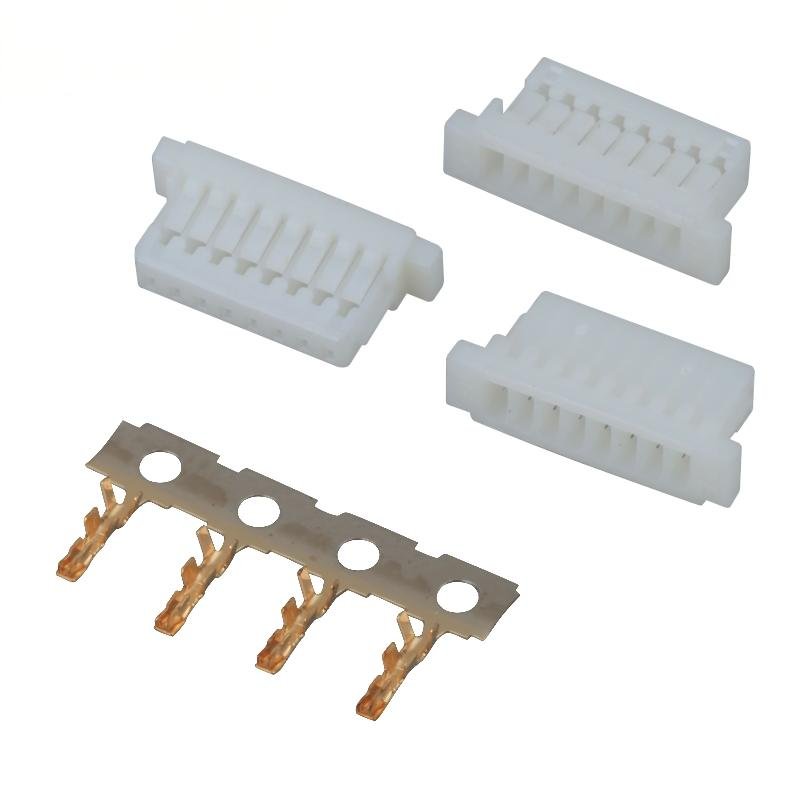

21009-2T01-1001 (1.0TB-T)
21009-2T01-1001 (1.0TB-T) - Image 2

21009-2T01-1001 (1.0TB-T)

Pitch 1.0 mm
Contacts /
Plastic Material /
Contact Material Phosphor Bronze
Plating Tin
Connector Type /
Mount Type /
Current Rating 1.0 AMP
Insulation Resistance  ≥ 100 MΩ
Contact Resistance ≤ 0.03 Ω
Withstanding Voltage 800 V，AC/Minute
Operation Temperature -25℃ ~ +85℃

More information about this connector, please check following link:

>Check & Download the drawing-21009-2T01-1001 (1.0TB-T)

Packaging: Reel & Tape

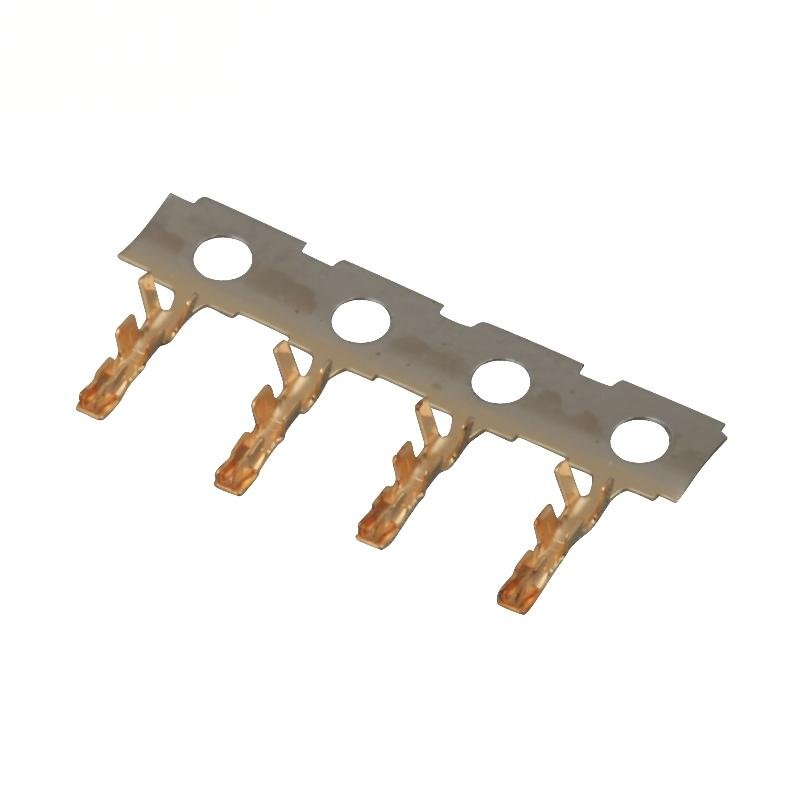

Wire to Board Connector Plug Crimp Terminal for 1.0TB Series

Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001

Conformity with IECQ QC 080000

Conformity with IATF 16949

Conformity with EU RoHS
