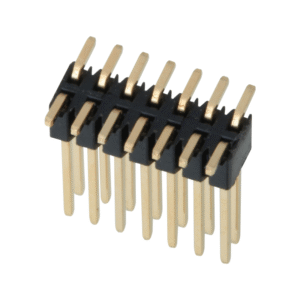

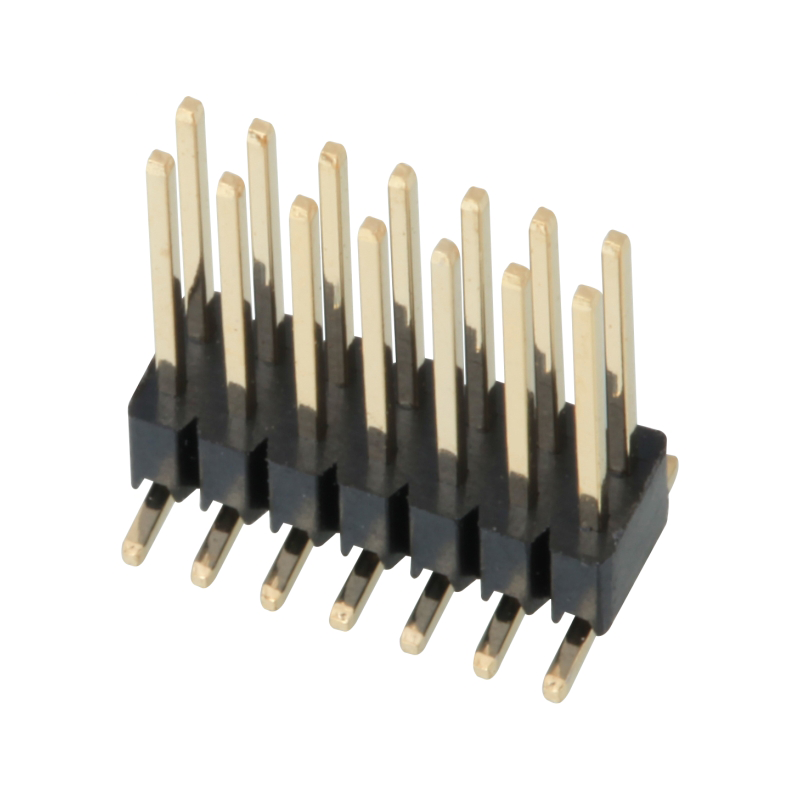

PZ-1.27-2xnPLB-L1=4.0-SMT=5.5-GW(80423-XXX2-X201)
PZ-1.27-2xnPLB-L1=4.0-SMT=5.5-GW(80423-XXX2-X201) - Image 2
PZ-1.27-2xnPLB-L1=4.0-SMT=5.5-GW(80423-XXX2-X201) - Image 3

PZ-1.27-2xnPLB-L1=4.0-SMT=5.5-GW(80423-XXX2-X201)

Pitch 1.27 mm
Contacts 2*2-2*40
Plastic Material PA9T (UL94V-0)
Contact Material Brass
Plating Gold
Connector Type R/A
Mount Type SMT
Current Rating 1.0 AMP
Insulation Resistance  ≥ 1000 MΩ
Contact Resistance ≤ 0.02 Ω
Withstanding Voltage 500 V，AC/Minute
Operation Temperature -40℃ ~ +105℃

More information about this connector, please check following link:

>Check the drawing-PZ-1.27-2xnPLB-L1=4.0-SMT=5.5-GW(80423-XXX2-X201)

Packaging: Tape & Reel

SMT Type H=2.0 mm Gold Plating Double Rows Pin header Connector

Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001

Conformity with IECQ QC 080000

Conformity with IATF 16949

Conformity with EU RoHS
