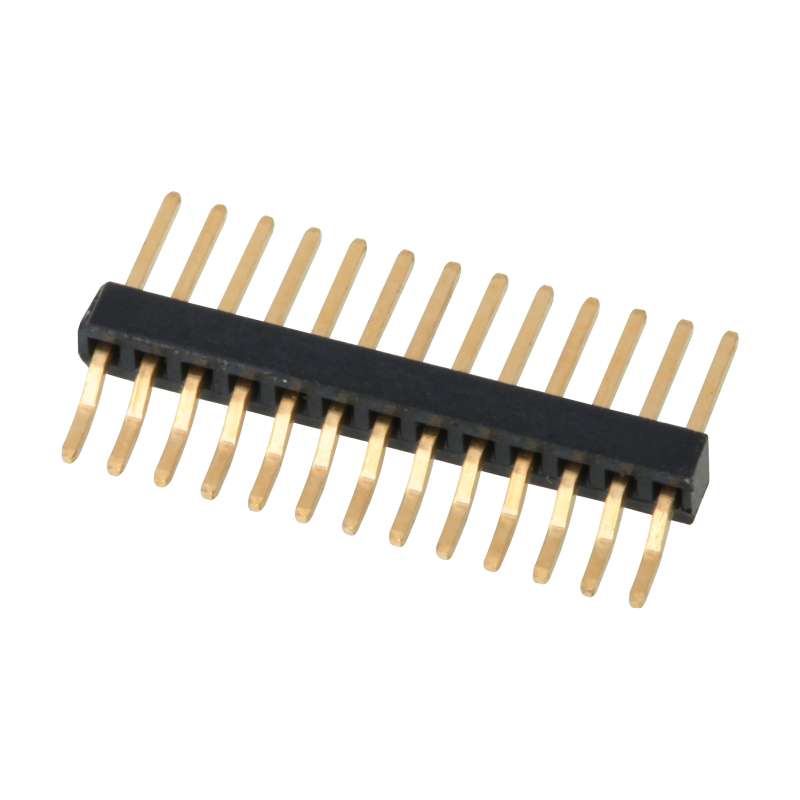

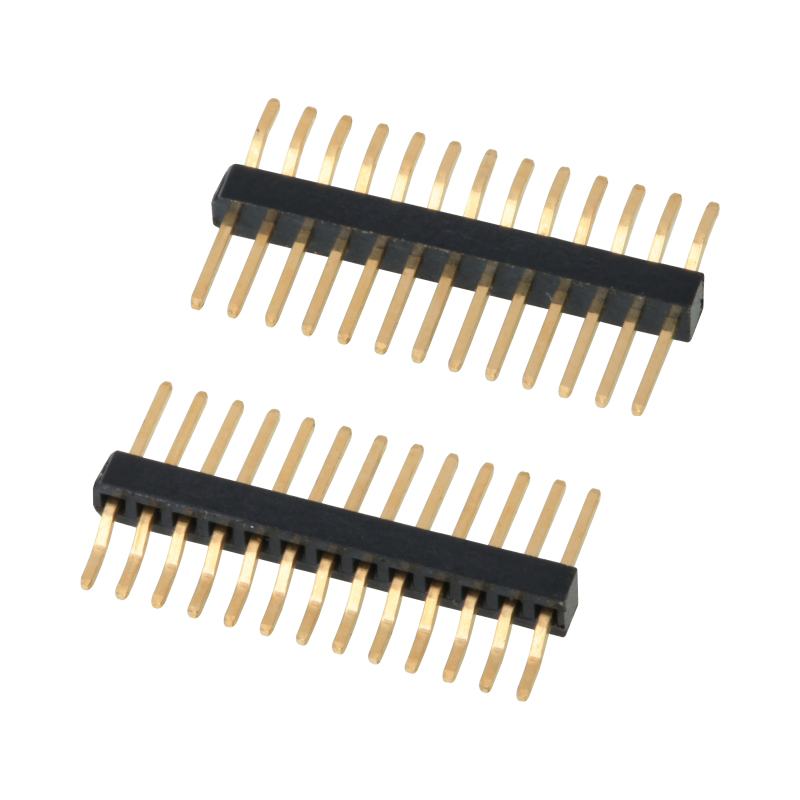

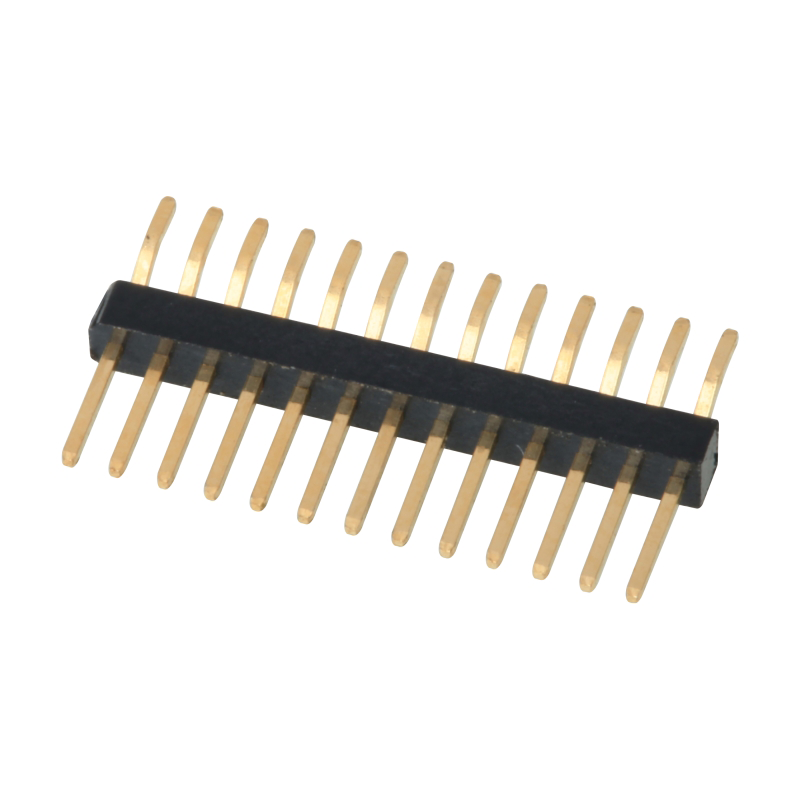

1.27 mm Pitch SMT Gold Plating Single Row Pin header Connector
Packaging: Bag
Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001
Conformity with IECQ QC 080000
Conformity with IATF 16949
Conformity with EU RoHS
PZ-1.27-1-NPWB-L1=4.0 (80424-XXX1-X201)
| Pitch | 1.27 mm |
| Contacts | 2-40 |
| Plastic Material | PA9T (UL94V-0) |
| Contact Material | Brass |
| Plating | Gold |
| Connector Type | R/A |
| Mount Type | SMT |
| Current Rating | 1.0 AMP |
| Insulation Resistance | ≥ 1000 MΩ |
| Contact Resistance | ≤ 0.02 Ω |
| Withstanding Voltage | 500V，AC/Minute |
| Operation Temperature | -40℃ ~ +105℃ |
