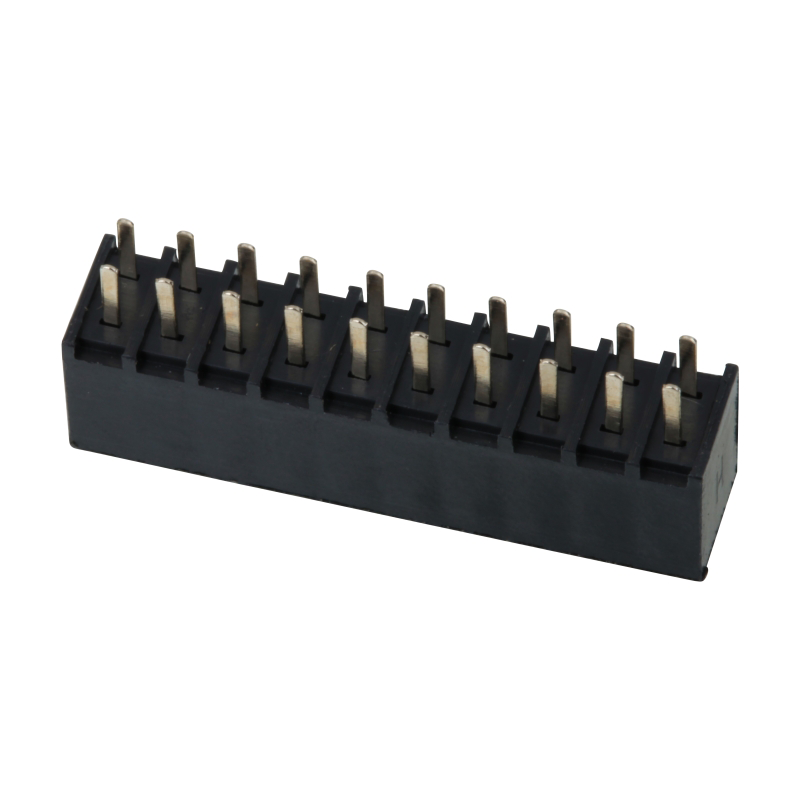

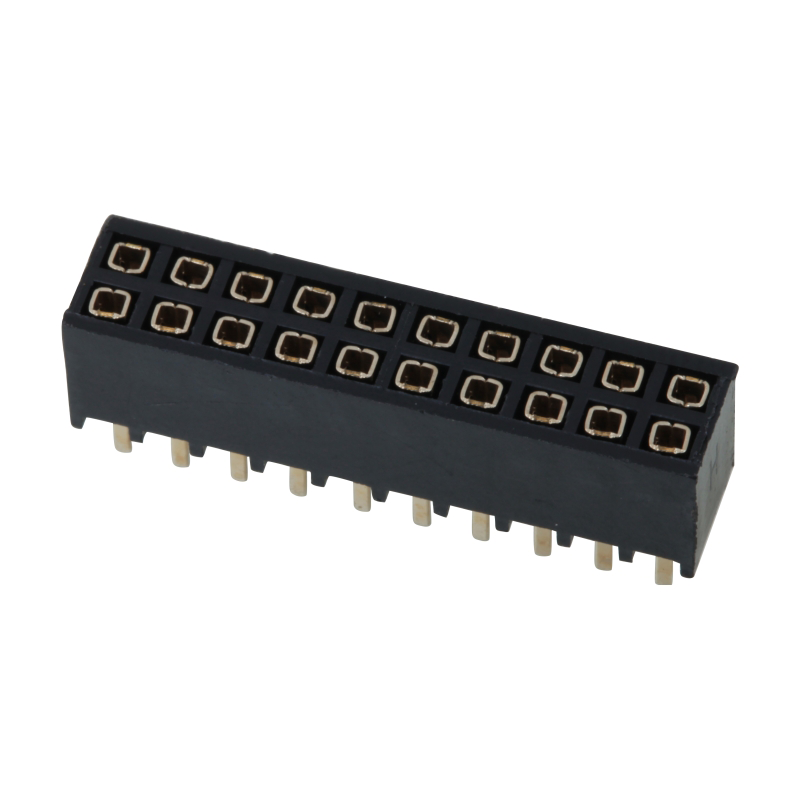

2.54 mm Pitch Straight DIP Gold Plating Double Rows Female header
Packaging: Tape & Reel
Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001
Conformity with IECQ QC 080000
Conformity with IATF 16949
Conformity with EU RoHS
PM-2.54-2xnPL=H=6.8-PC=3.3 (80541-XXX3-X202)
| Pitch | 2.54 mm |
| Contacts | 2*2-2*40 |
| Plastic Material | PA9T (UL94V-0) |
| Contact Material | Brass |
| Plating | Gold |
| Connector Type | Straight |
| Mount Type | DIP |
| Current Rating | 3.0 AMP |
| Insulation Resistance | ≥ 1000 MΩ |
| Contact Resistance | ≤ 0.02 Ω |
| Withstanding Voltage | 1000 V，AC/Minute |
| Operation Temperature | -40℃ ~ +105℃ |
