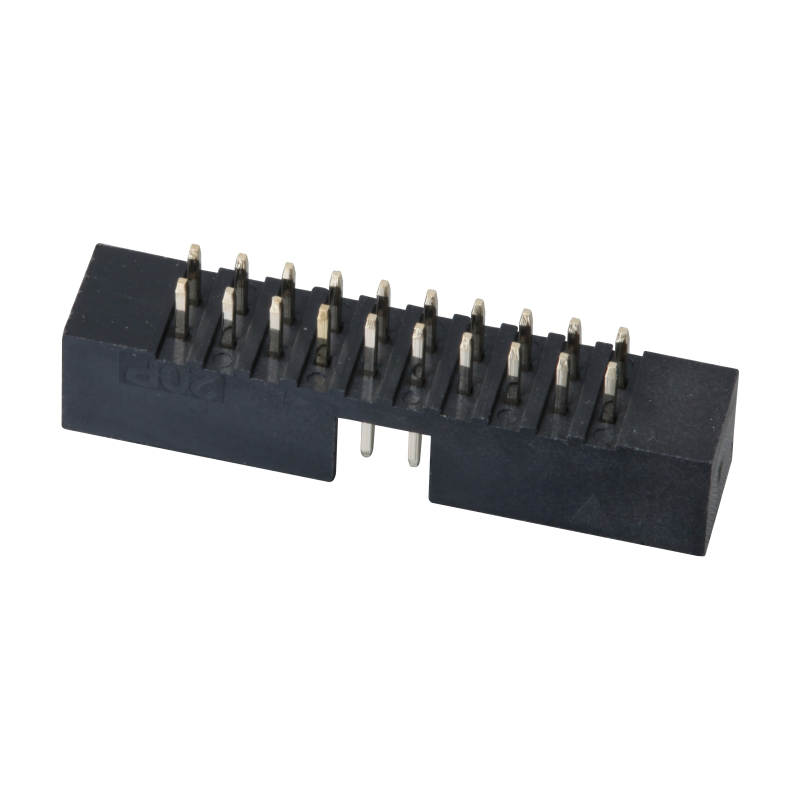

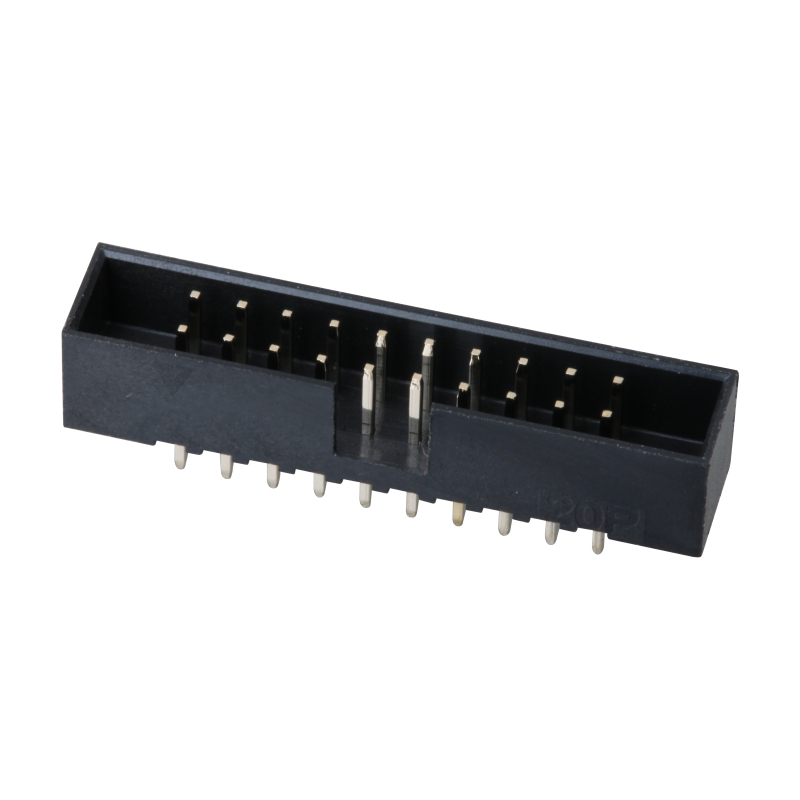

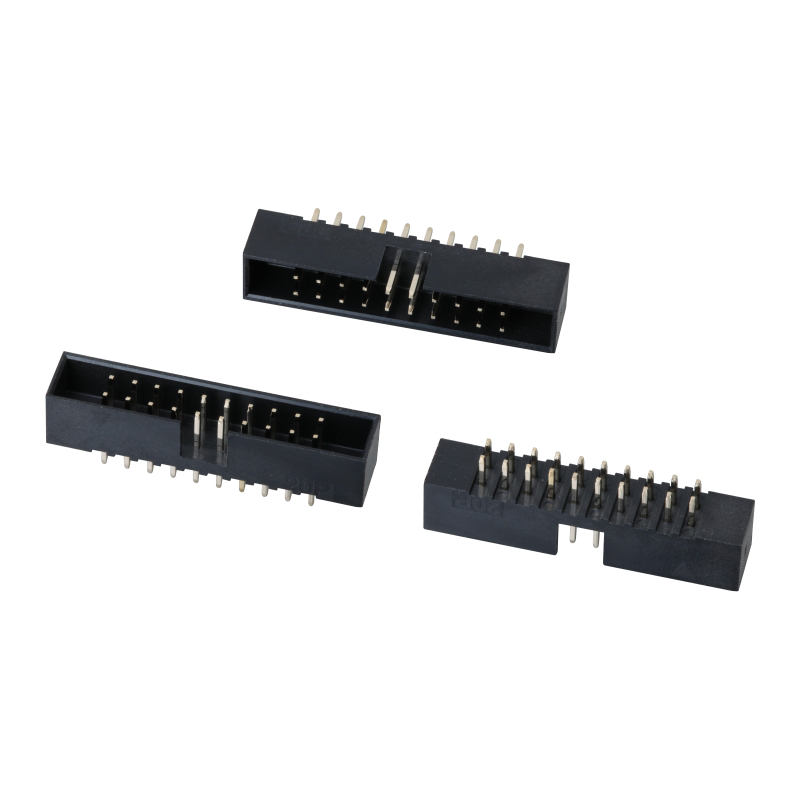

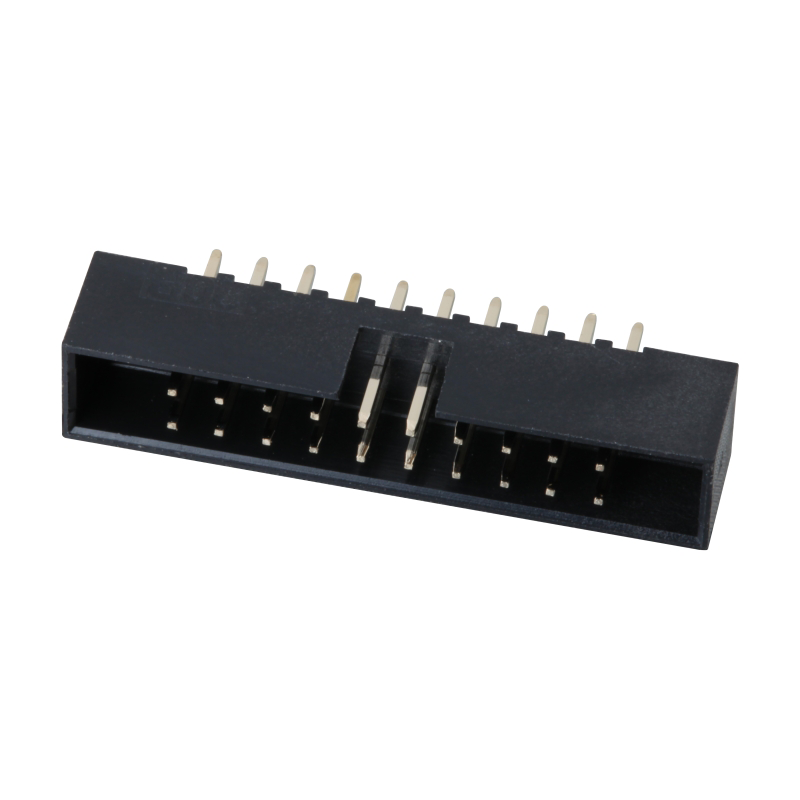

2.0 mm Pitch Gold Plating Straight SMT Double Rows Box Header
Packaging: Tape & Reel
Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001
Conformity with IECQ QC 080000
Conformity with IATF 16949
Conformity with EU RoHS
JN-2.0-2xnPLB-H=5.7-SMT=6.9 (80633-XXX3-X201)
| Pitch | 2.0 mm |
| Contacts | 2*6-2*60 |
| Plastic Material | PA9T (UL94V-0) |
| Contact Material | Brass |
| Plating | Gold / Tin |
| Connector Type | Straight |
| Mount Type | SMT |
| Current Rating | 1.5 AMP |
| Insulation Resistance | ≥ 800 MΩ |
| Contact Resistance | ≤ 0.02 Ω |
| Withstanding Voltage | 400 V，AC/Minute |
| Operation Temperature | -40℃ ~ +105℃ |
