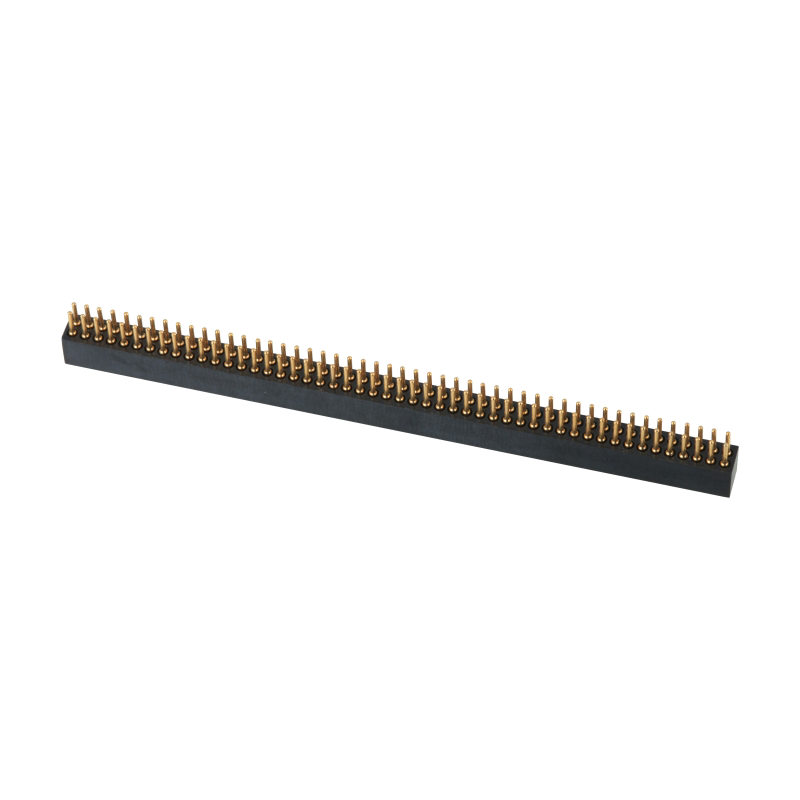

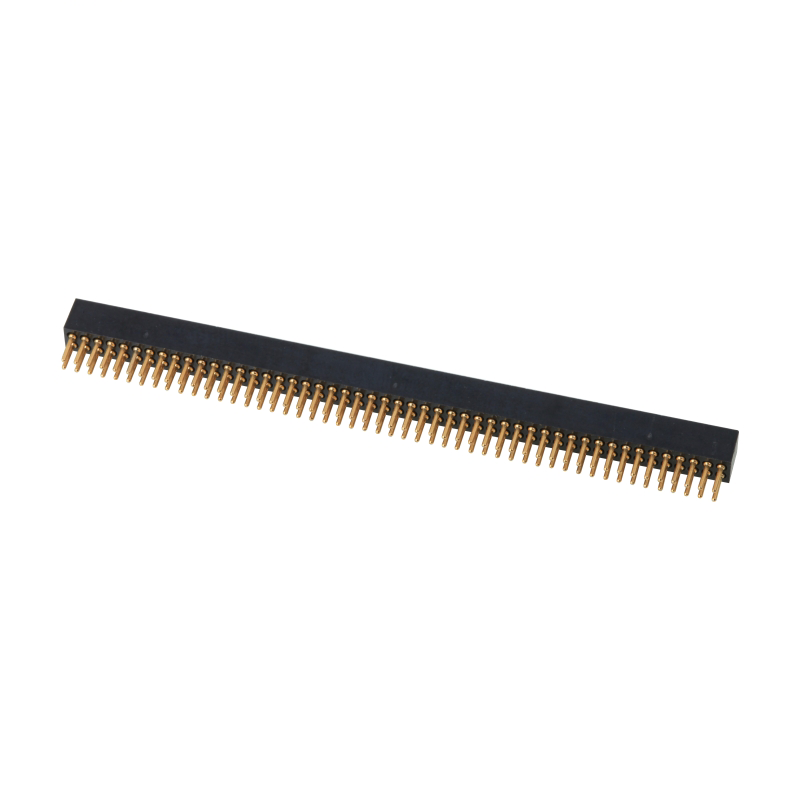

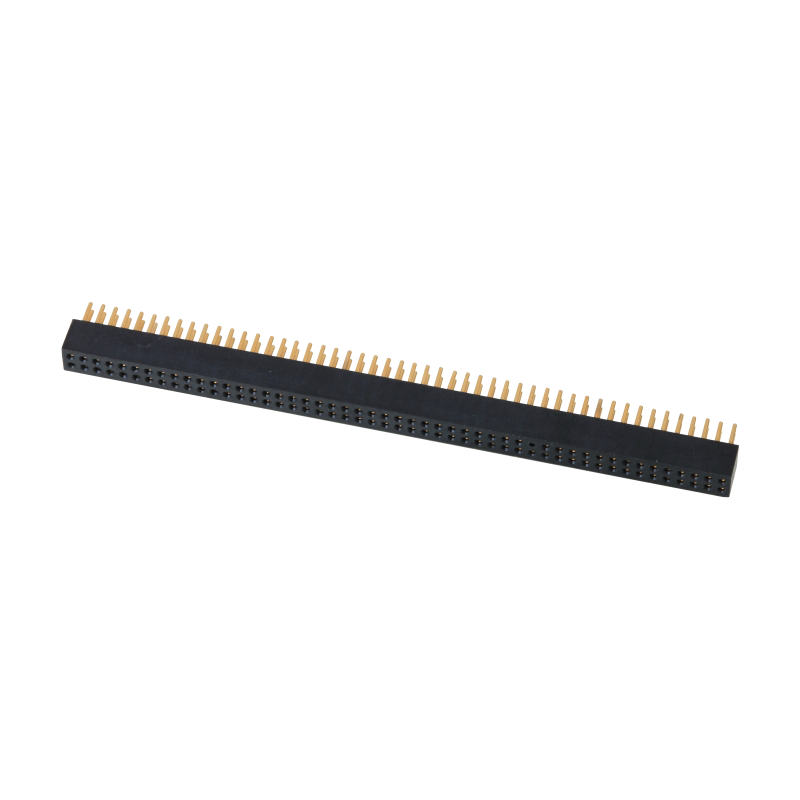

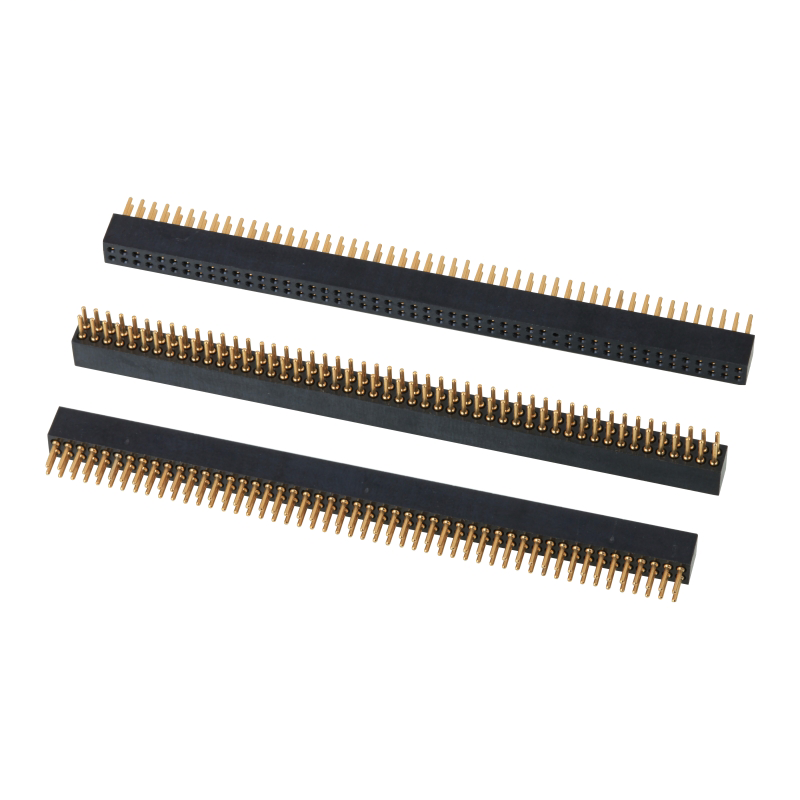

1.27 mm Pitch Gold Plating DIP Double Rows Round Pin Female header
Packaging: Box
Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001
Conformity with IECQ QC 080000
Conformity with IATF 16949
Conformity with EU RoHS
IC-F-1.27-2xnPL-H=3.8-PC=3.0 (82221-XXX3-X901)
| Pitch | 1.27 mm |
| Contacts | 2*2-2*40 |
| Plastic Material | PA9T (UL94V-0) |
| Contact Material | Brass |
| Plating | Gold |
| Connector Type | Straight |
| Mount Type | DIP |
| Current Rating | 1.0 AMP |
| Insulation Resistance | ≥ 1000 MΩ |
| Contact Resistance | ≤ 0.02 Ω |
| Withstanding Voltage | 500 V，AC/Minute |
| Operation Temperature | -40℃ ~ +105℃ |
