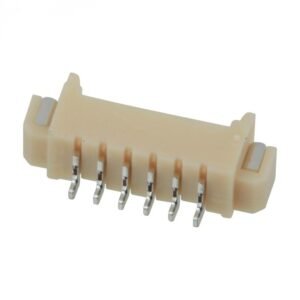

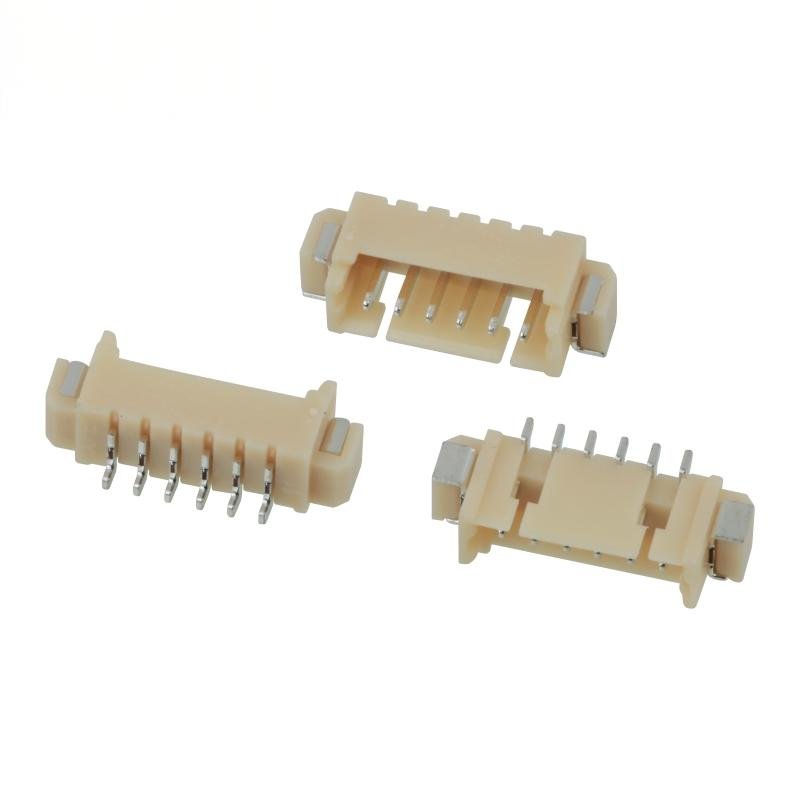

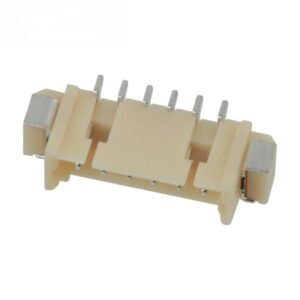

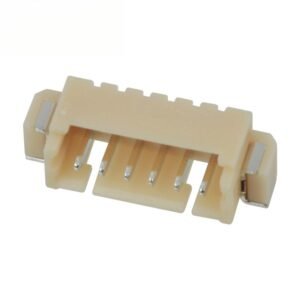

61017-xx01-1001 (1.25T-nAWB)
61017-xx01-1001 (1.25T-nAWB) - Image 2
61017-xx01-1001 (1.25T-nAWB) - Image 3
61017-xx01-1001 (1.25T-nAWB) - Image 4

61017-xx01-1001 (1.25T-nAWB)

Pitch 1.25 mm
Contacts 2-16
Plastic Material PA9T (UL94V-0)
Contact Material Phosphor Bronze
Plating Tin
Connector Type R/A
Mount Type SMT
Current Rating 1.0 AMP
Insulation Resistance  ≥ 1000 MΩ
Contact Resistance ≤ 0.03 Ω
Withstanding Voltage 1000 V，AC/Minute
Operation Temperature -25℃ ~ +85℃

More information about this connector, please check following link:

>Check & Download the drawing-61017-xx01-1001 (1.25T-nAWB)

Packaging: Reel & Tape: >Check the packaging drawing

1.25 mm Pitch PA9T Material Wire to Board Connector R/A SMT Wafer Connector

Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001

Conformity with IECQ QC 080000

Conformity with IATF 16949

Conformity with EU RoHS
