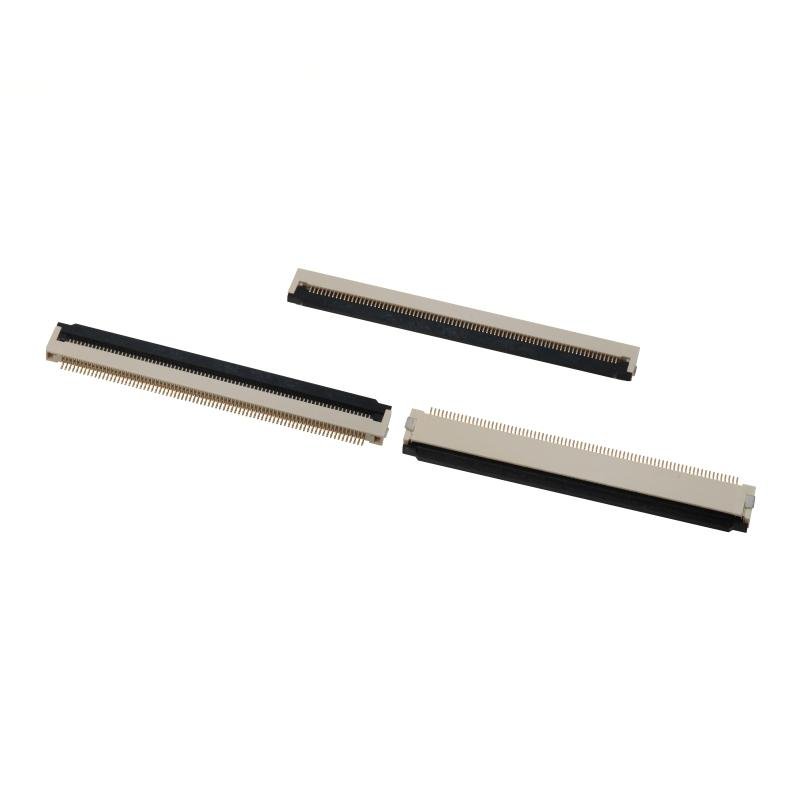

60029-xx07-1001 (0.5-17-nPBX-AU)

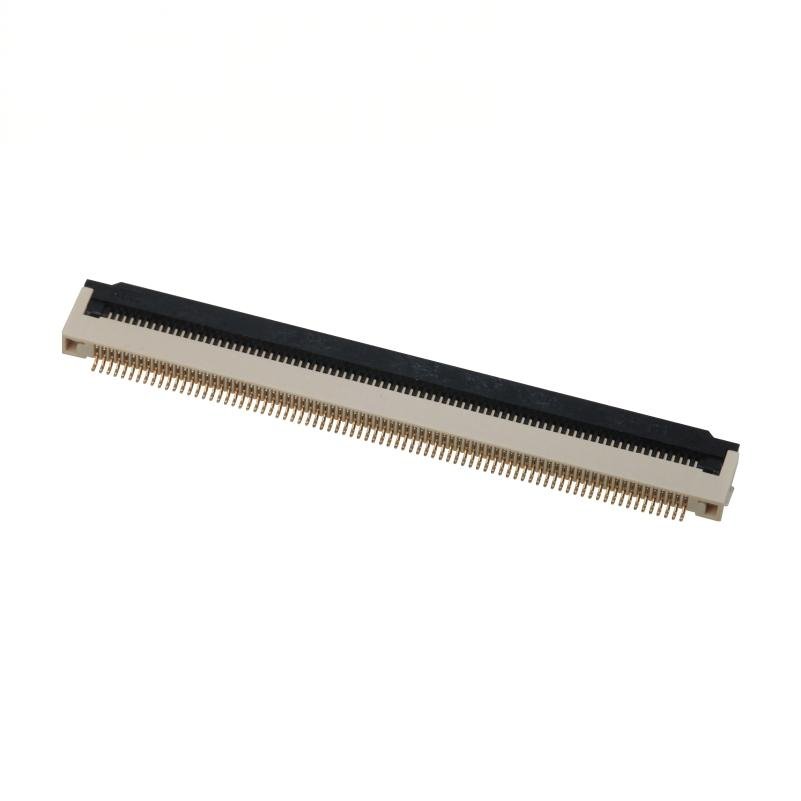

60029-xx07-1001 (0.5-17-nPBX-AU) - Image 2
60029-xx07-1001 (0.5-17-nPBX-AU) - Image 3

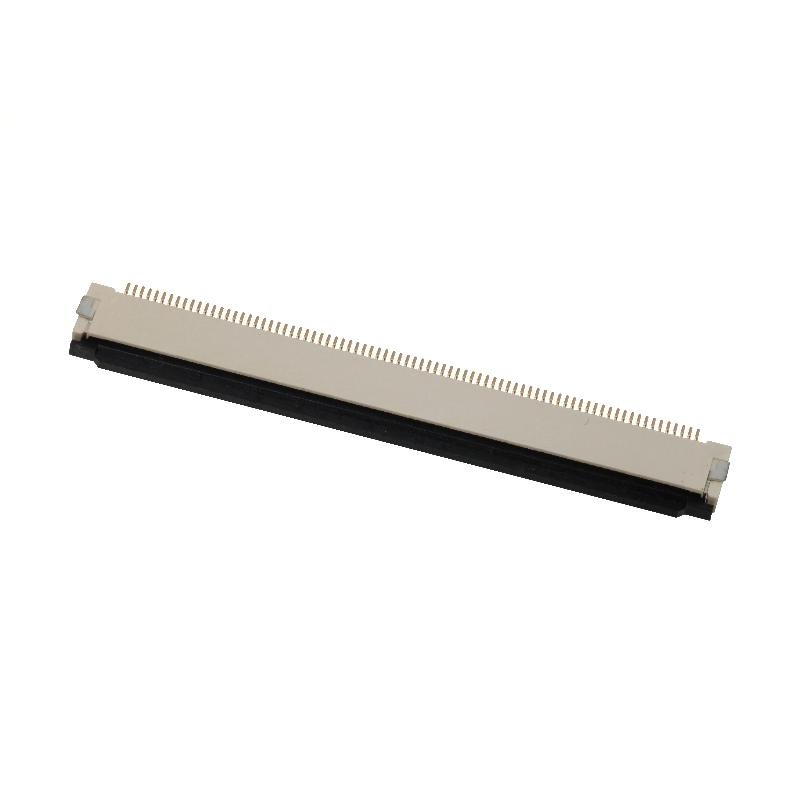

60029-xx07-1001 (0.5-17-nPBX-AU) - Image 4

60029-xx07-1001 (0.5-17-nPBX-AU)

Pitch 0.5 mm
Contacts 4-80
Plastic Material LCP (UL94V-0)
Contact Material Phosphor Bronze
Plating Gold
Connector Type Front Flip / ZIF
Mount Type SMT
Current Rating 0.5 AMP
Insulation Resistance  ≥ 500 MΩ
Contact Resistance ≤ 0.03 Ω
Withstanding Voltage 500V，AC/Minute
Operation Temperature -25℃ ~ +85℃

The detailed specifications about this connector, please check following link:

>Check & Downlad the drawing 60029-xx07-1001 (0.5-17-nPBX-AU)

Packaging: Type & reel: > Check the packaging drawing

H=2.0 mm Bottom Contact Gold Plating FPC Connector ZIF SMT FPC/FFC Connector

Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001

Conformity with IECQ QC 080000

Conformity with IATF 16949

Conformity with EU RoHS
