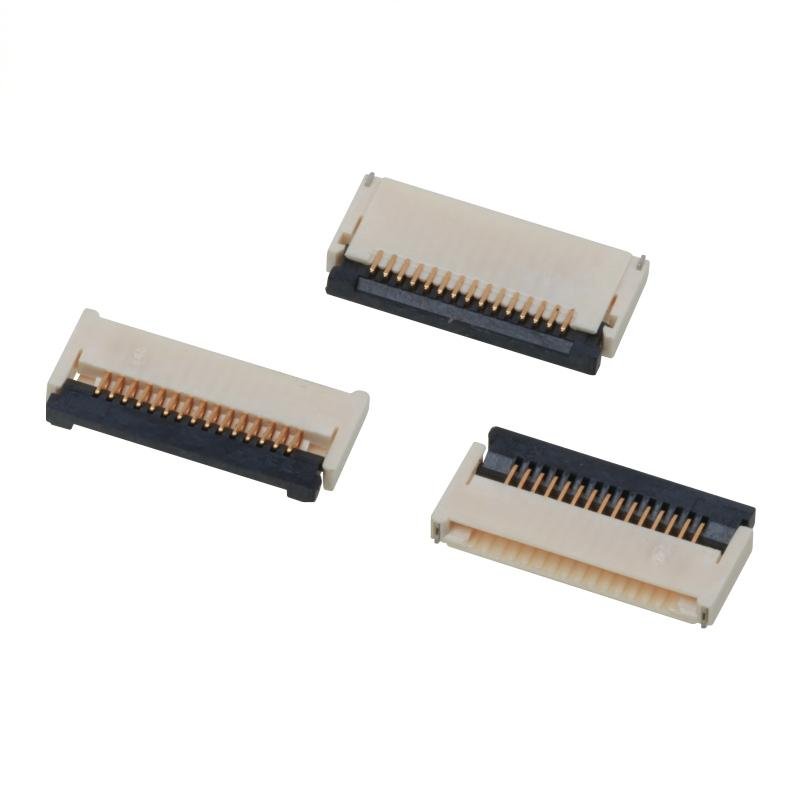

60027-xx03-5014(0.5-14-nPBX)

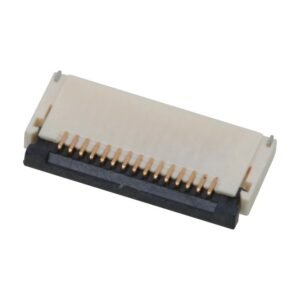

60027-xx03-5014(0.5-14-nPBX) - Image 2

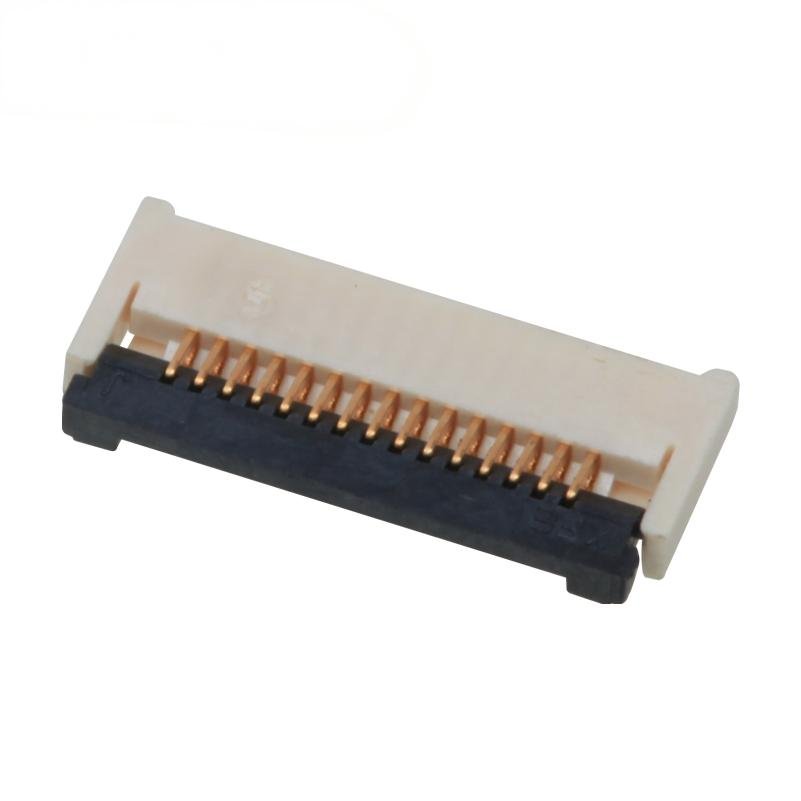

60027-xx03-5014(0.5-14-nPBX) - Image 3

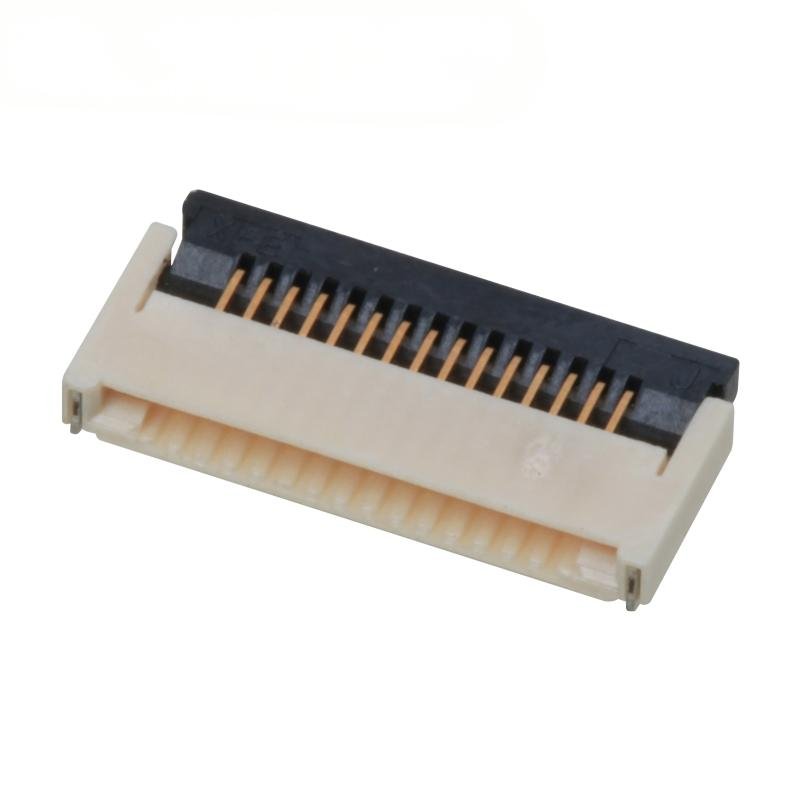

60027-xx03-5014(0.5-14-nPBX) - Image 4

60027-xx03-5014(0.5-14-nPBX)

Pitch 0.5 mm
Contacts 4-30
Plastic Material LCP (UL94V-0)
Contact Material Phosphor Bronze
Plating Tin / Gold
Connector Type Back Flip / ZIF
Mount Type SMT
Current Rating 0.5 AMP
Insulation Resistance  ≥ 500 MΩ
Contact Resistance ≤ 0.03 Ω
Withstanding Voltage 500V，AC/Minute
Operation Temperature -25℃ ~ +85℃

The detailed specifications about this connector, please check following link:

Check & Download the drawing 60027-xx03-5014(0.5-14-nPBX)

Packaging: Tape & reel: > Check the packaging drawing

SMT FPC FFC Connector Back Flip Lower Contact FPC Connector

Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001

Conformity with IECQ QC 080000

Conformity with IATF 16949

Conformity with EU RoHS
