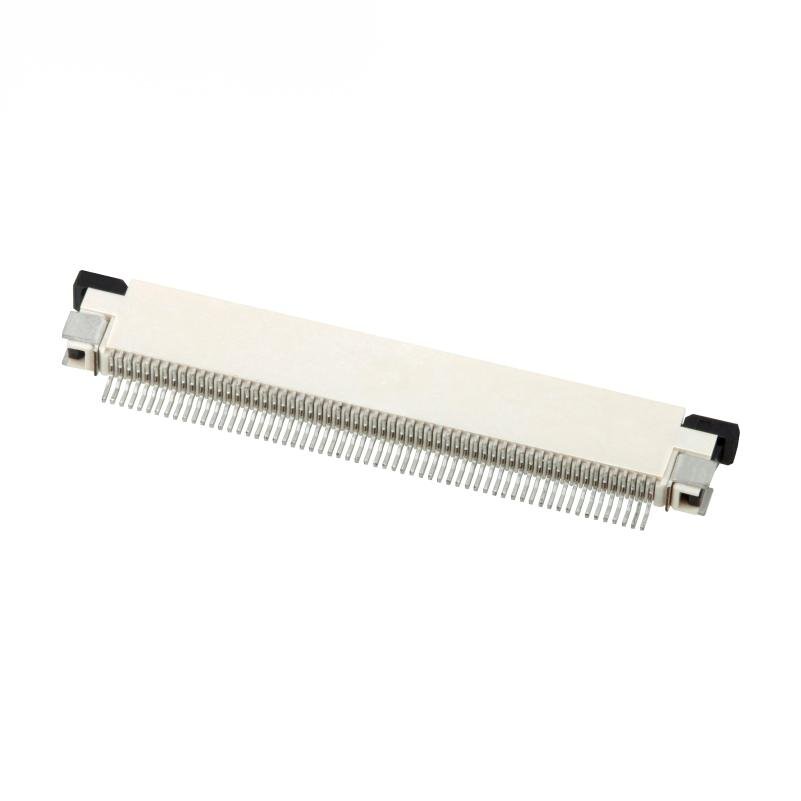

60026-xx02-1001(0.5-13-nPBX)

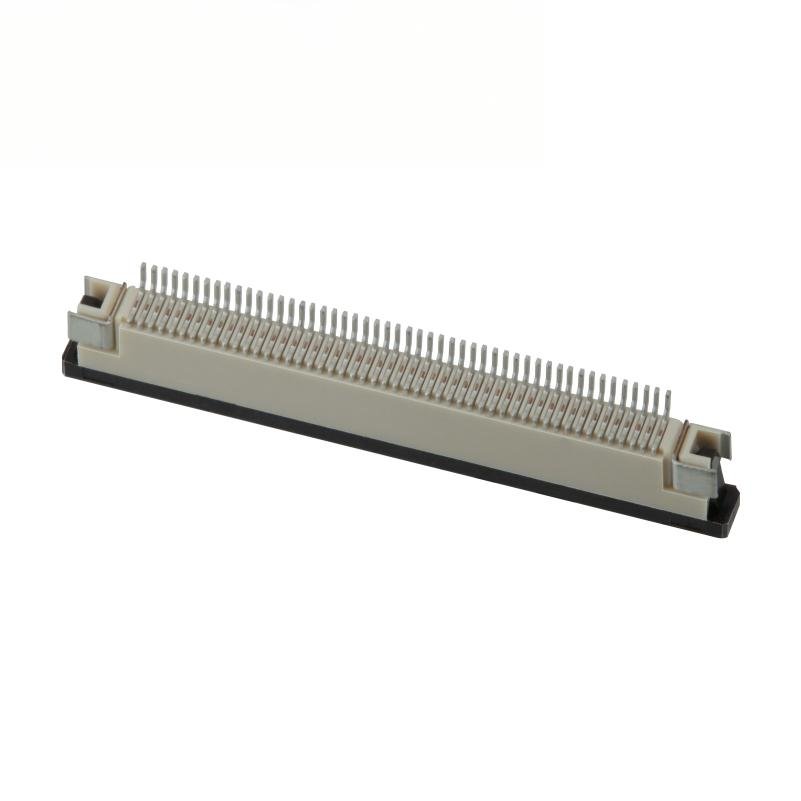

60026-xx02-1001(0.5-13-nPBX) - Image 2

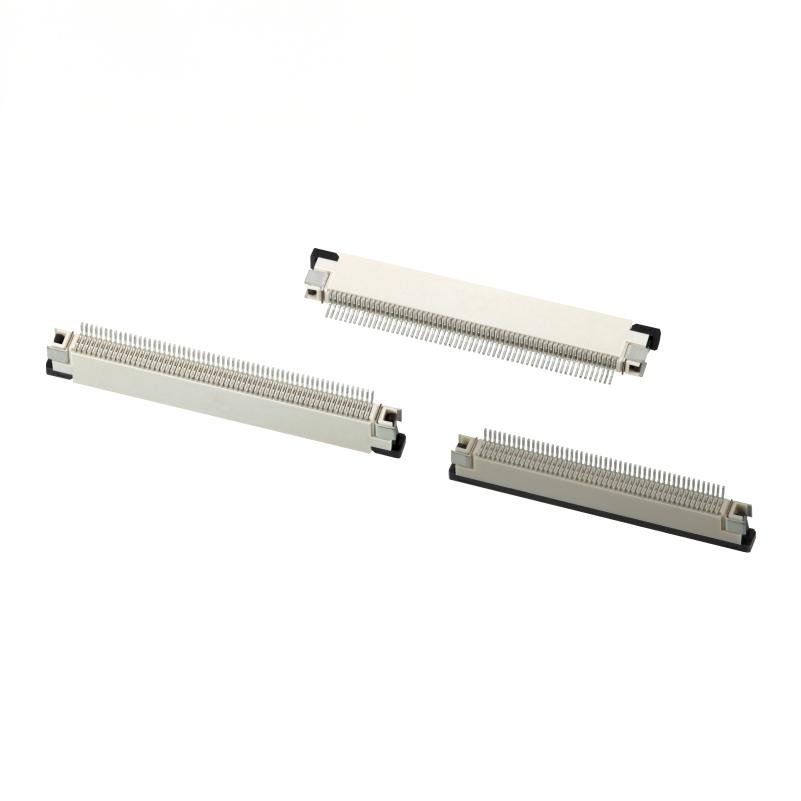

60026-xx02-1001(0.5-13-nPBX) - Image 3

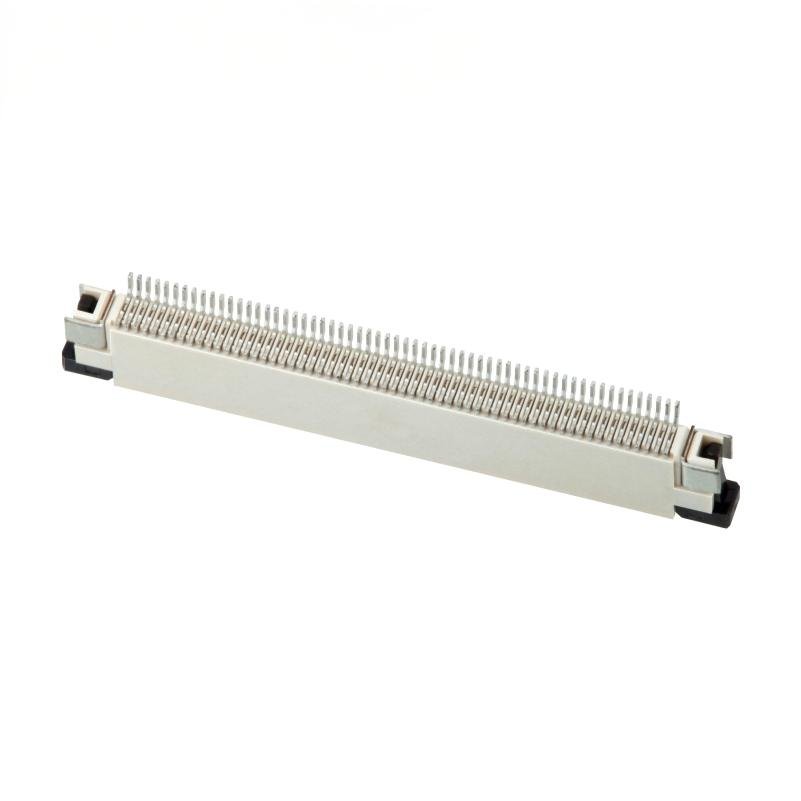

60026-xx02-1001(0.5-13-nPBX) - Image 4

60026-xx02-1001(0.5-13-nPBX)

Pitch 0.5 mm
Contacts 4-60
Plastic Material LCP (UL94V-0)
Contact Material Phosphor Bronze
Plating Tin / Gold
Connector Type Front Flip
Mount Type SMT
Current Rating 0.5 AMP
Insulation Resistance  ≥ 500 MΩ
Contact Resistance ≤ 0.03 Ω
Withstanding Voltage 500V，AC/Minute
Operation Temperature -25℃ ~ +85℃

The detailed specifications about this connector, please check following link:

> Check & Download the drawing-60026-xx02-1001(0.5-13-nPBX)

Packaging: Type & reel: > Check the packaging drawing

0.5-13 Series Silder FPC Connector H=2.45 mm SMT FPC/FFC Connector

Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001

Conformity with IECQ QC 080000

Conformity with IATF 16949

Conformity with EU RoHS
