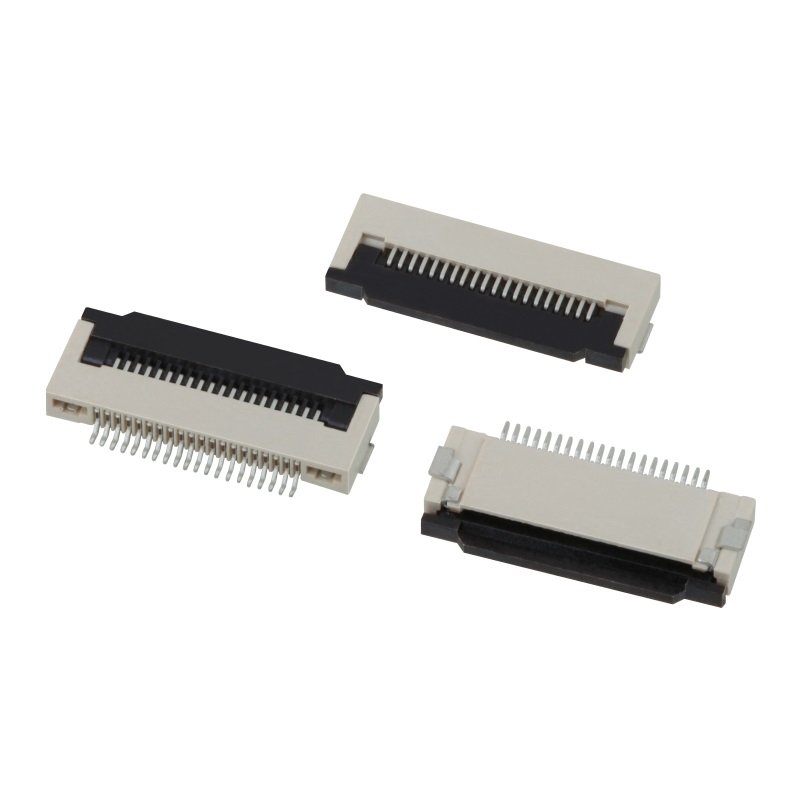

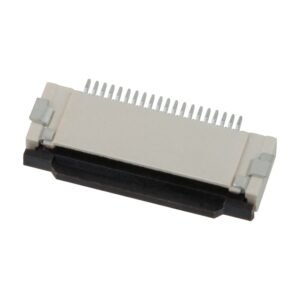

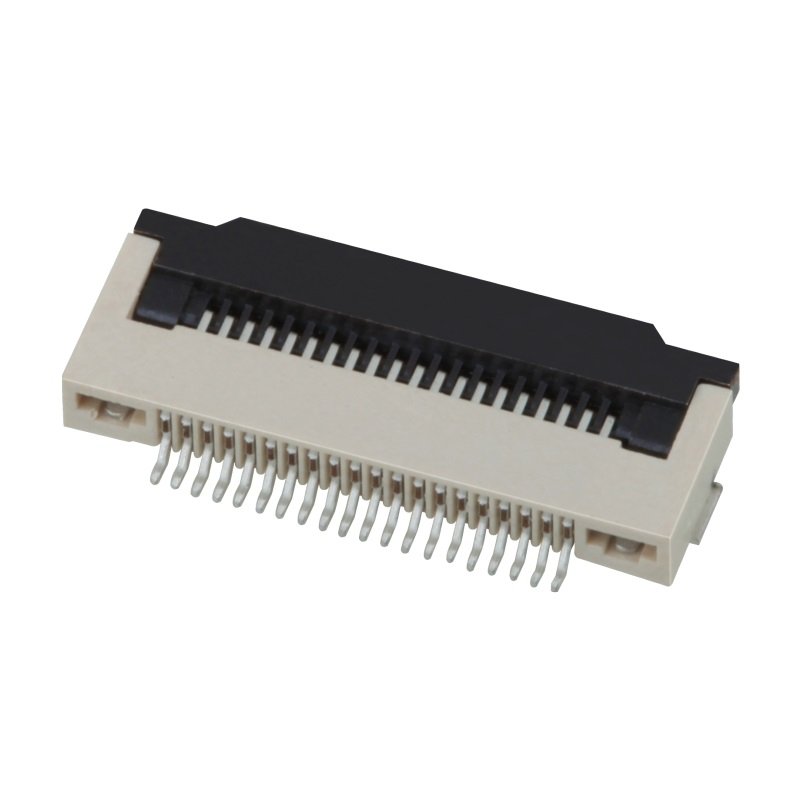

60025-xx02-5001(0.5-12-nPBX)
60025-xx02-5001(0.5-12-nPBX) - Image 2
60025-xx02-5001(0.5-12-nPBX) - Image 3
60025-xx02-5001(0.5-12-nPBX) - Image 4

60025-xx02-5001(0.5-12-nPBX)

Pitch 0.5 mm
Contacts 4-60
Plastic Material LCP (UL94V-0)
Contact Material Phosphor Bronze
Plating Tin / Gold
Connector Type Front Flip / ZIF
Mount Type SMT
Current Rating 0.5 AMP
Insulation Resistance  ≥ 500 MΩ
Contact Resistance ≤ 0.03 Ω
Withstanding Voltage 500V，AC/Minute
Operation Temperature -25℃ ~ +85℃

The detailed specifications about this connector, please check following link:

> Check & Download the drawing 60025-xx02-5001(0.5-12-nPBX)

Packaging: Tape & reel: > Check the packaging drawing

0.5 mm Pitch FPC Connector Bottom Contact H=2.0 mm ZIF SMD FPC/FFC Connector

Conformity with ISO 9001, ISO 14001, and ISO 45001, ISO 50001

Conformity with IECQ QC 080000

Conformity with IATF 16949

Conformity with EU RoHS
